Acoustics Vent Membrane
| PRODUCT NAME： | Acoustics Vent Membrane |
| PRODUCT MODEL： | AYN-M80H300 |
| PRODUCT DESCRIPTION： | e-PTFE Hydrophobic Acoustics transmission membrane |
| APPLICATION FEILD： | Acoustics & Electronics |
| APPLICATION PRODUCTS： | Smart Phone, Earphone, Tablet PC, Microphone |
|
PHYSICAL PROPERTIES |
REFERED TEST STANDARD |
UNIT |
TYPICAL DATA |
| Membrane Color |
/ |
/ |
Black
|
| Membrane Construction | / | / |
Mesh/ePTFE
|
| Membrane Surface Property | / | / | Hydrophobic
|
| Thickness |
ISO 534 |
mm |
0.075±0.005 |
| Min Air Permeability |
ASTM D737 (测试面积：1 cm²) |
ml/min/cm2@7KPa |
>1000 |
| Water Entry Pressure |
ASTM D751 (测试面积：1 cm²) |
KPa for 30 sec |
>200 |
| Transmission Loss
(@1kHz, I.D.= 3.0mm) |
Internal Control 内控方法 |
dB |
< 0.5 dB |
| IP Rating
(Test I.D.= 2.0mm) |
IEC 60529 |
/ |
IP68
|
| ISO Rating
(Test I.D.= 2.0mm) |
ISO 22810 |
/ |
NA
|
| Operation Temperature |
IEC 60068-2-14 |
℃ |
-40℃～150℃ |
| ROHS |
IEC 62321 |
/ |
Meet ROHS Requirements
|
| REACH
SVHC |
REACH 法规 1907/2006/EC |
/ |
Meet REACH Requirements
|

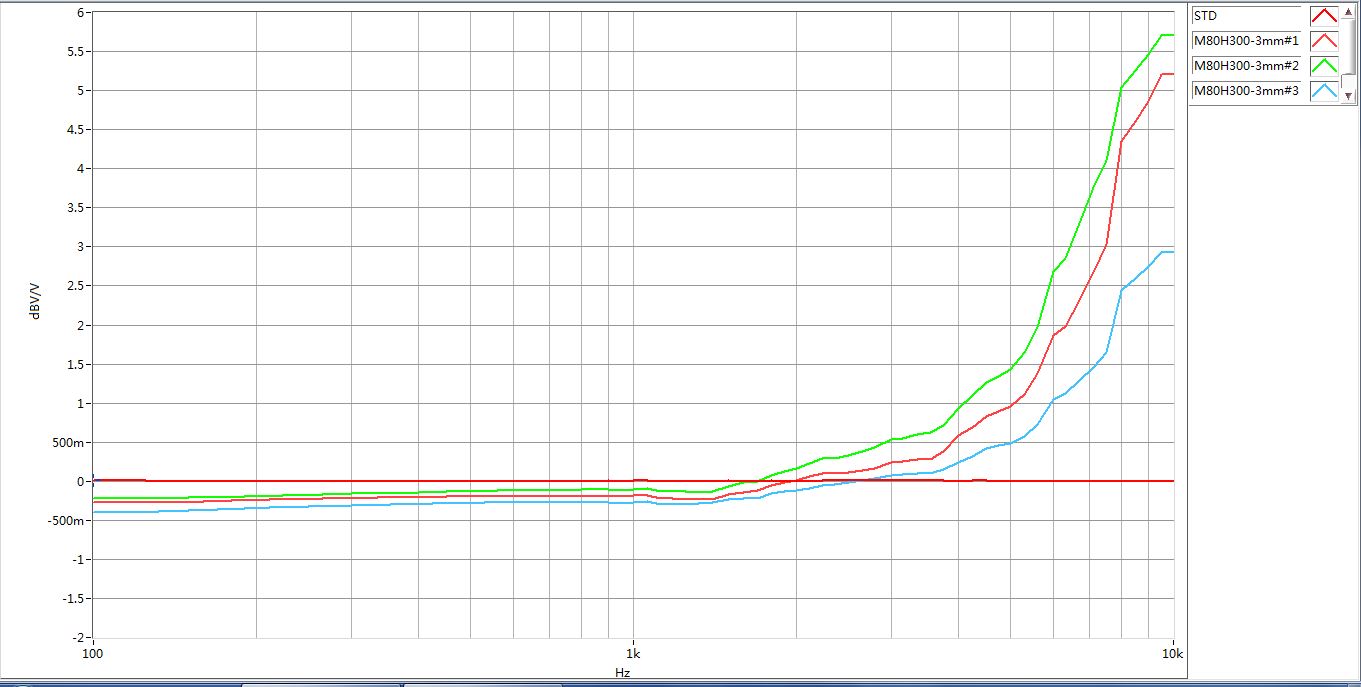

Transmission Loss of AYN-M80H300 acoustics membrane < 8dB @ 1KHz, and < 25dB in the whole frequency range.
AYN-M80H300
(1) Acoustic Response and IP Grade test part dimension: I.D. 2.0 mm / O.D. 6.0 mm.
(2)The results are tested using a typical digital output MEMS microphone system and self-designed test device in AYNUO laboratory with representative sample size. The design of the device will affect final performance.
This series of membranes can be used in waterproof and acoustics membrane for portable and wearable electronic devices, such as Smart Phone, Earphone, Smart Watch, and Bluetooth Speaker, Alertor etc.
The membrane could provide the device with immersed waterproof protection and minimal sound transmission loss, keeping the device with the excellent acoustics transmission performance.
Shelf life is 5 years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80° F (27° C) and 60% RH.
All data above are typical data for the membrane raw material, for reference only, and should not be used as special data for outgoing quality control.
All technical information and advice given here is based on Aynuo’s previous experiences and test results. Aynuo gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
