AYN-SIVVD10.2_TC05SO50

short description:

PRODUCT NAME: Snap In Vent Valve

PRODUCT MODEL  :AYN-SIVVD10.2_TC05SO50

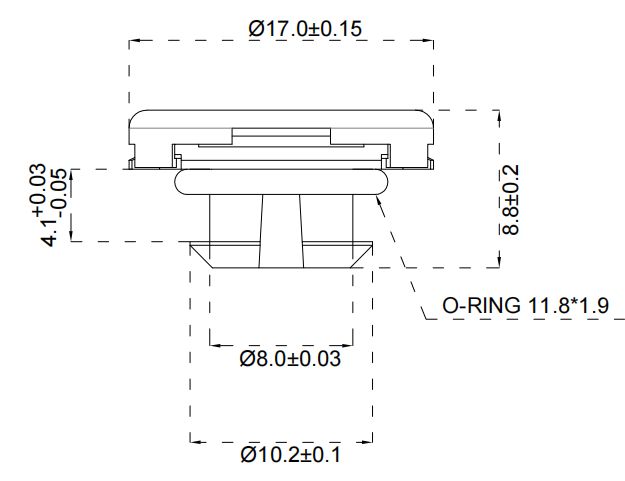

PRODUCT DIAGRAM  AYN-SIVVD10.2_TC05SO501

MEMBRANE MODEL  AYN-TC05SO50




Product Detail

Product Tags

Membrane Properties

PHYSICAL PROPERTIES

REFERED TEST STANDARD

UNIT

TYPICAL DATA

Valve Color

/

/

Black

Valve Material

/

/

PBT+30% GF

Seal ring Color

/

/

Red

Seal ring Material

/

/

Silicone Rubber

Membrane Construction

/

/

PTFE/PET non-woven

Membrane Surface Property

/

/

Hydrophobic & Oleophobic

Typical Air Flow Rate

ASTM D737

ml/min @ 7KPa

600

Water Entry Pressure

ASTM D751

KPa dwell 30 sec

≥100

IP Grade

IEC 60529

/

IP67/IP68

Moisture Vapor Transmission

ASTM E96

g/m2/24h

>5000

Service Temperature

IEC 60068-2-14

-40℃~150℃

ROHS

IEC 62321

/

Meet ROHS Requirements

PFOA & PFOS

US EPA 3550C & US EPA 8321B

/

PFOA & PFOS Free

Installation Recommendation

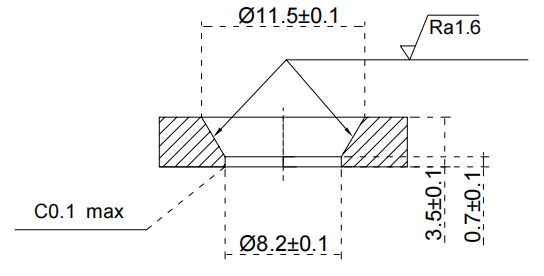

Recommended Installation Dimensions

 AYN-SIVVD10.2_TC05SO502

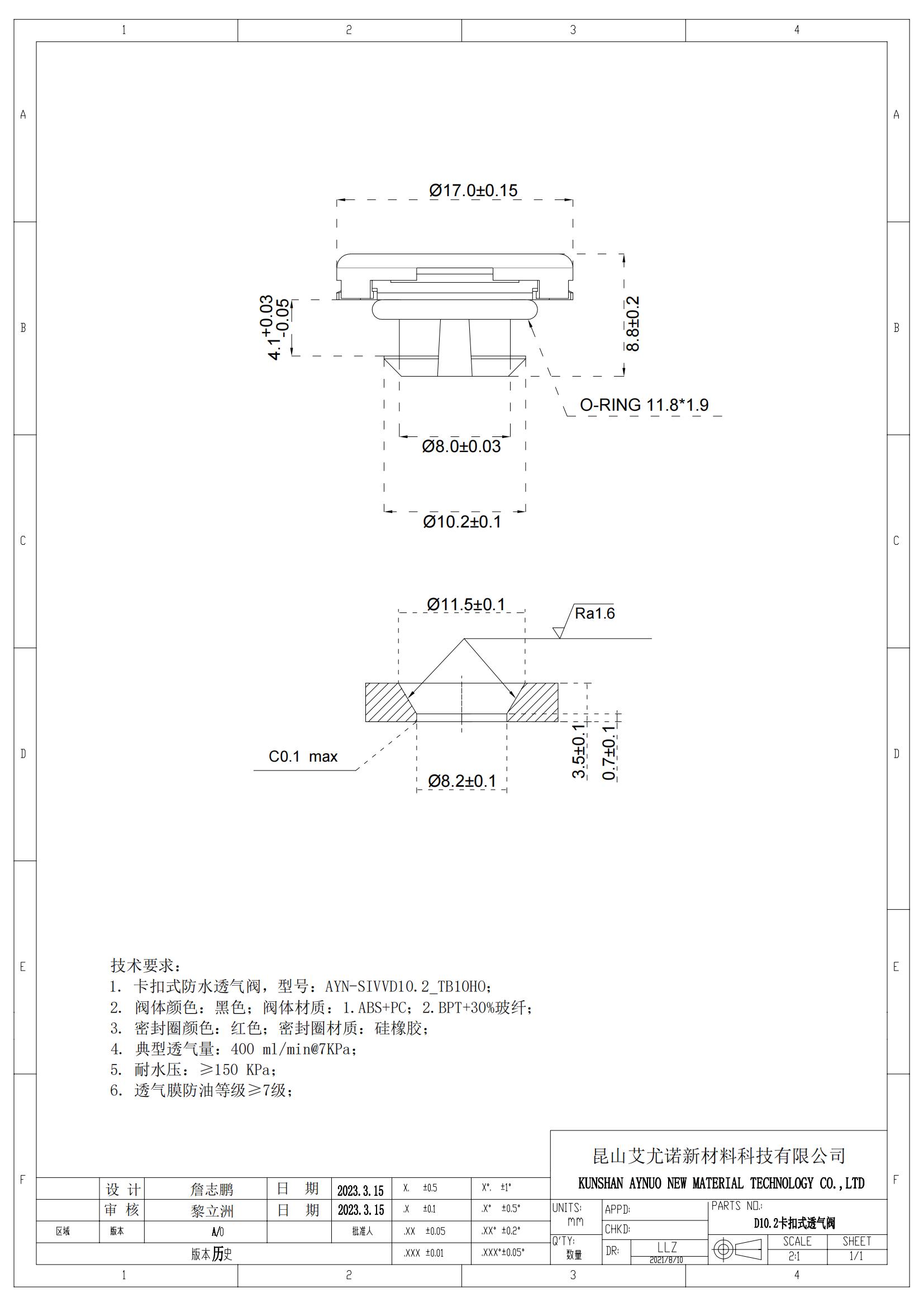

D10.2卡扣式透气阀+安装尺寸 - Model (1)_00

Application

AYN®  Snap-In  Breathable  Valve  effectively  equalize  pressure  and  reduce  condensation  in  sealed  enclosures,  while  keeping out solid and liquid contaminants. AYN® Snap-In Vent Valve is used to protect Automotive sensitive control units, sensors/actuators,  motors and  hybrid/electric component.

Shelf Life

Shelf life is 5 years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80°F (27°C) and 60% RH.

Note

All  data  above  are typical  data  for the  membrane  raw  material,  for  reference  only,  and  should  not  be  used  as  special  data  for outgoing quality control.

All  technical  information  and  advice  given   here  is   based  on  Aynuo’s   previous  experiences  and  test   results.  Aynuo  gives  this information to the  best  of  its  knowledge,  but  assumes  no  legal  responsibility.  Customers  are  asked  to  check  the  suitability  and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
