Screw-In Vent Valve AYN-LWVV_SS_M12x1.5-7_E20WO-E

short description:

PRODUCT NAME: Screw-In Vent Valve
PRODUCT MODEL: AYN-LWVV_SS_M12x1.5-7_E20WO-E

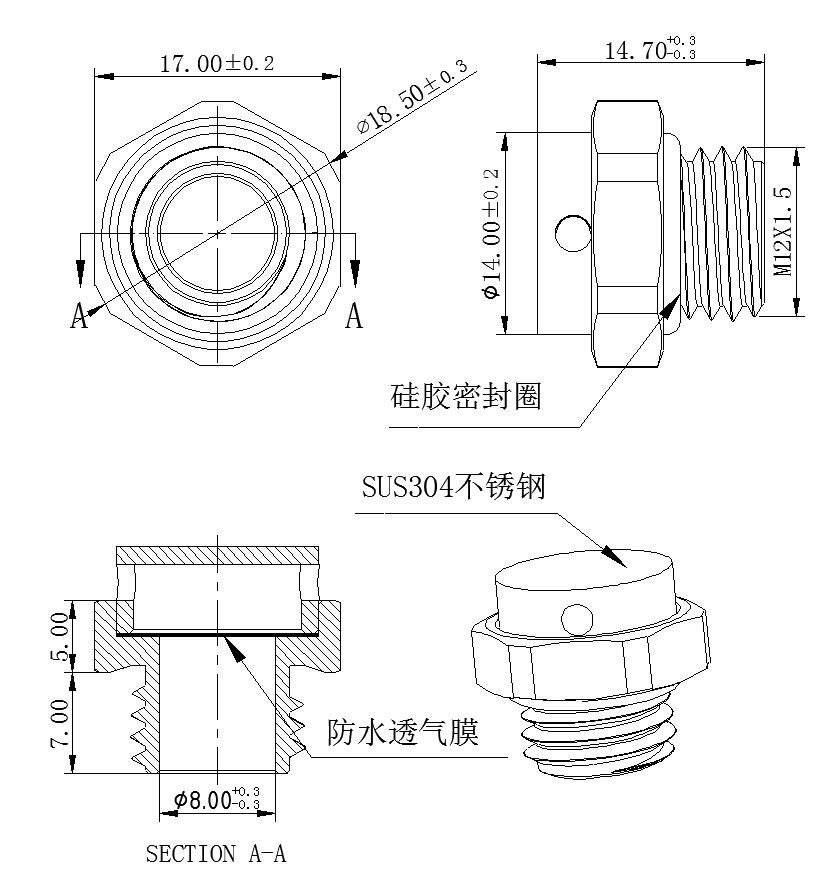

PRODUCT DIAGRAM:

 a

MEMBRANE MODEL: AYN-E20WO-E

Product Detail

Product Tags

Product Properties

PHYSICAL PROPERTIES

TEST METHOD

UNIT

TYPICAL DATA

Thread SPEC

/

/

M12*1.5-7

Valve Color

/

/

Silver

Valve Material

/

/

SUS 304

Seal ring Material

/

/

Silicone Rubber

Membrane Construction

/

/

PTFE/PO non-woven

Membrane Surface Property

/

/

Oleophobic & Hydrophobic

Typical Air Flow Rate

ASTM D737

ml/min @ 7KPa

1500

Water Entry Pressure

ASTM D751

KPa dwell 30 sec

≥60

IP Grade

IEC 60529

/

IP67/IP68

Moisture Vapor Transmission

ASTM E96

g/m2/24h

>5000

Service Temperature

IEC 60068-2-14

-40℃ ~ 125℃

ROHS

IEC 62321

/

Meet ROHS Requirements

PFOA & PFOS

US EPA 3550C & US EPA 8321B

/

PFOA & PFOS Free

Installation Notes

1)The Installation hole size adopts the general standard of M12*1.5.
2)It is recommended to fix the cavity with nuts when the wall thickness of the cavity is less than 3mm.
3)When it needs to install two breathable valves, it’s suggested that the valves should be installed in opposite directions to reach the air convection effects.
4)Suggested installation torque is 0.8N.m, lest torque too much to affect the product performance.

Application

Changing harsh environmental conditions cause seals to fail and allow contaminants to damage sensitive electronics.
AYN® Screw-In Breathable Valve effectively equalize pressure and reduce condensation in sealed enclosures, while keeping out solid and liquid contaminants. They improve the safety, reliability and service life of outdoor electronic devices. AYN® Screw-In Breathable Valve is designed to provide Hydrophobic/Oleophobic protection and withstand the mechanical stresses of challenging environments.

Shelf Life

Shelf life is 5 years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80° F (27° C) and 60% RH.

Note

All data above are typical data for the membrane raw material, for reference only, and should not be used as special data for outgoing quality control.
All technical information and advice given here is based on Aynuo’s previous experiences and test results. Aynuo gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
